This is the final version of the Plant Keeper control system. It has 6 appliance plugins, a 7-button user interface, 3 modes and 3 sensors. I have separated the high power branch and load switching from the low voltage control system for safety and convenience. I made all of the electrical work modular so that I can add features to the system in the future. The firmware can be updated over the ethernet port on the side of the control circuit box.

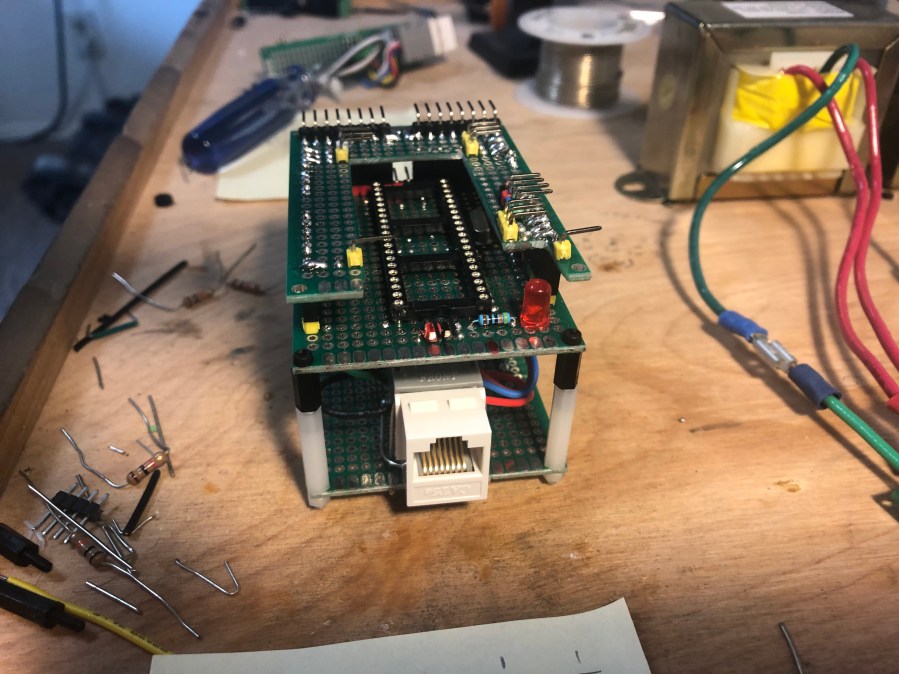

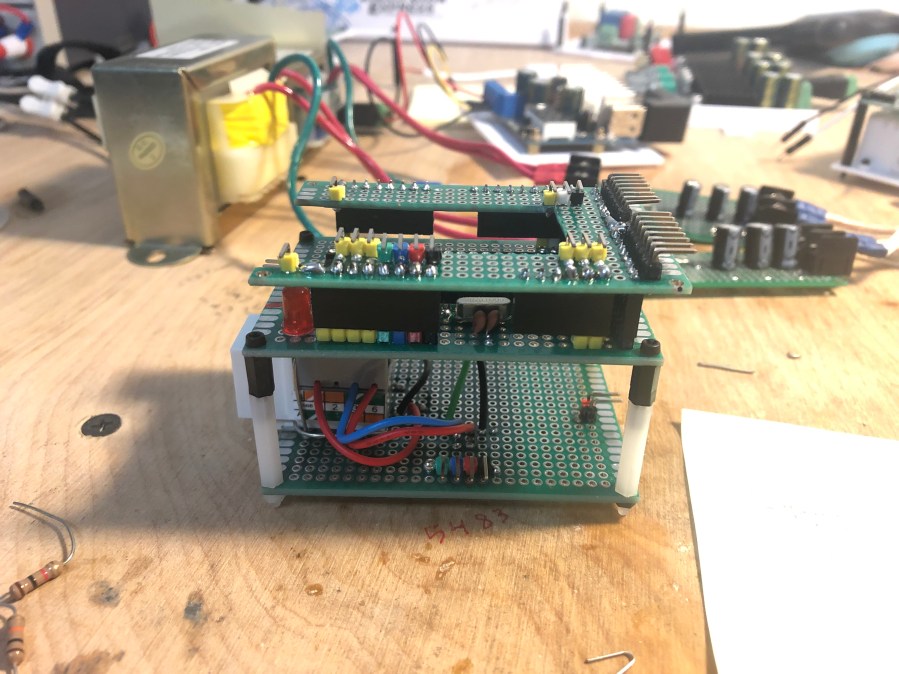

This Jig is holding the power supply and button signal perf board and is mounted to the back of the LED Button jig. This jig will be concealed behind the wood housing.
The LED push buttons are secured to this jig that will be mounted on the face of the wood housing for the Plant Keeper system.
